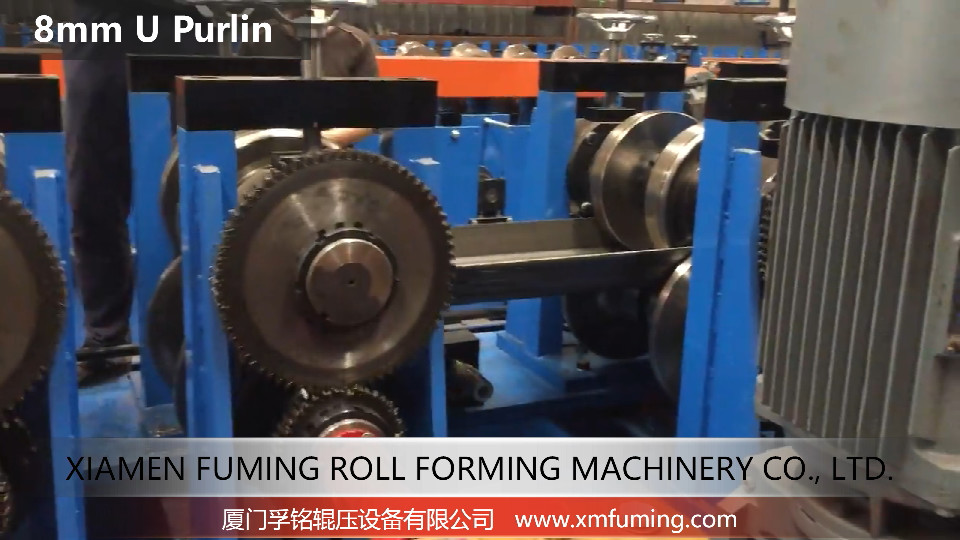

Product Description:
Purlin Roll Forming Machine is designed to produce high-quality U purlin with precise cutting tolerance of ≤±1 mm. This roll forming machine is equipped with a PLC control system, 20 roller stations, and servo motor power system. It is capable of processing material thickness of 6.0-8.0mm, and comes with a hydraulic cutting system for high efficiency.
Features:
- Product Name: Purlin Roll Forming Machine
- Cutting Length Accuracy: ±1mm
- Roller Stations: 20 Stations
- Material Thickness: 6.0-8.0mm
- Control System: PLC
- Hydraulic Cutting
- Size changing automatically
- U purlin

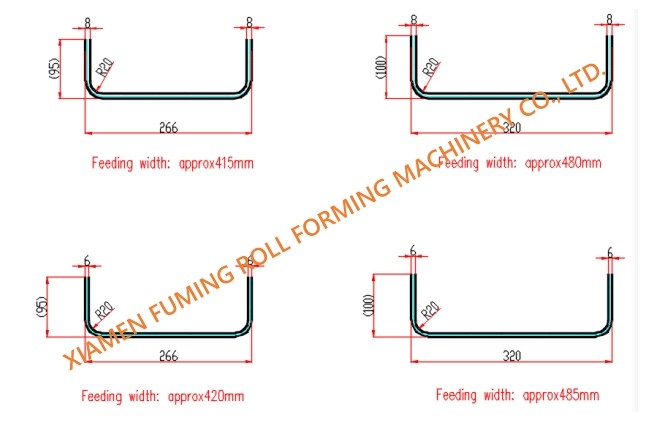

Drawing:
Technical Parameters:

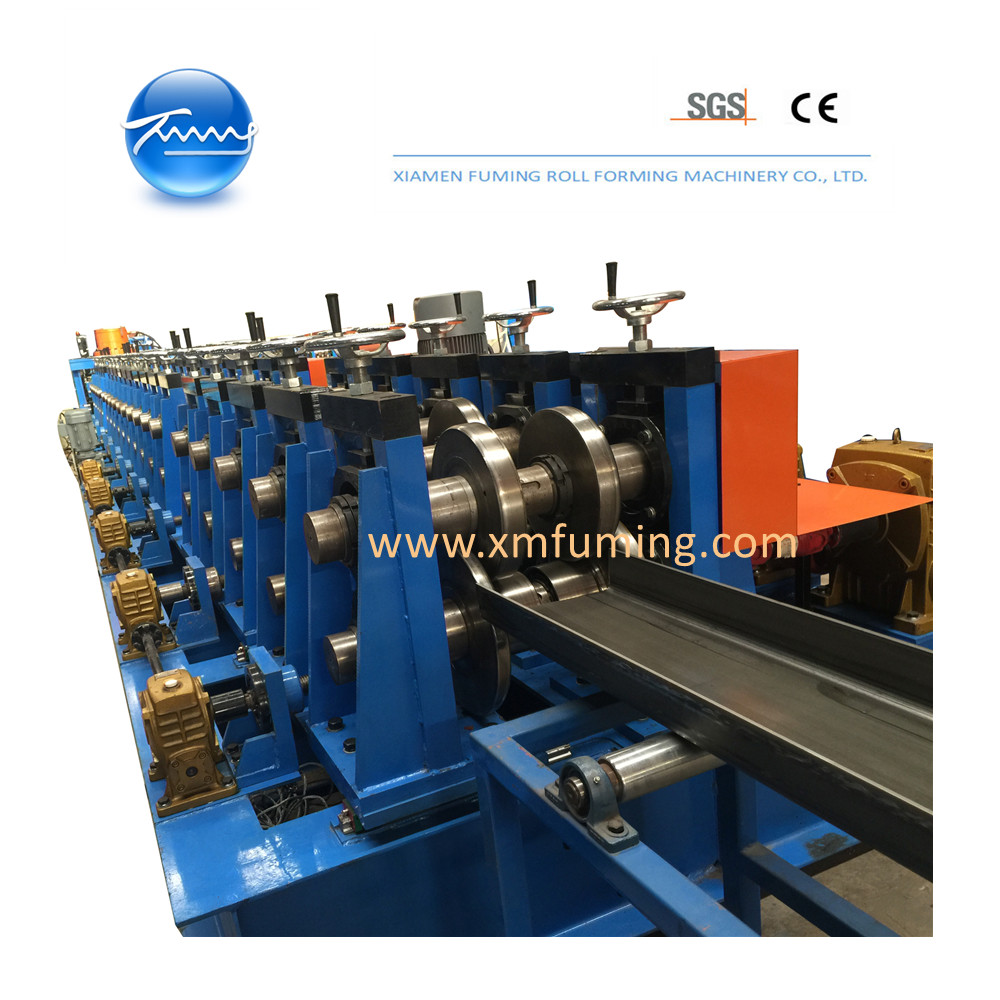

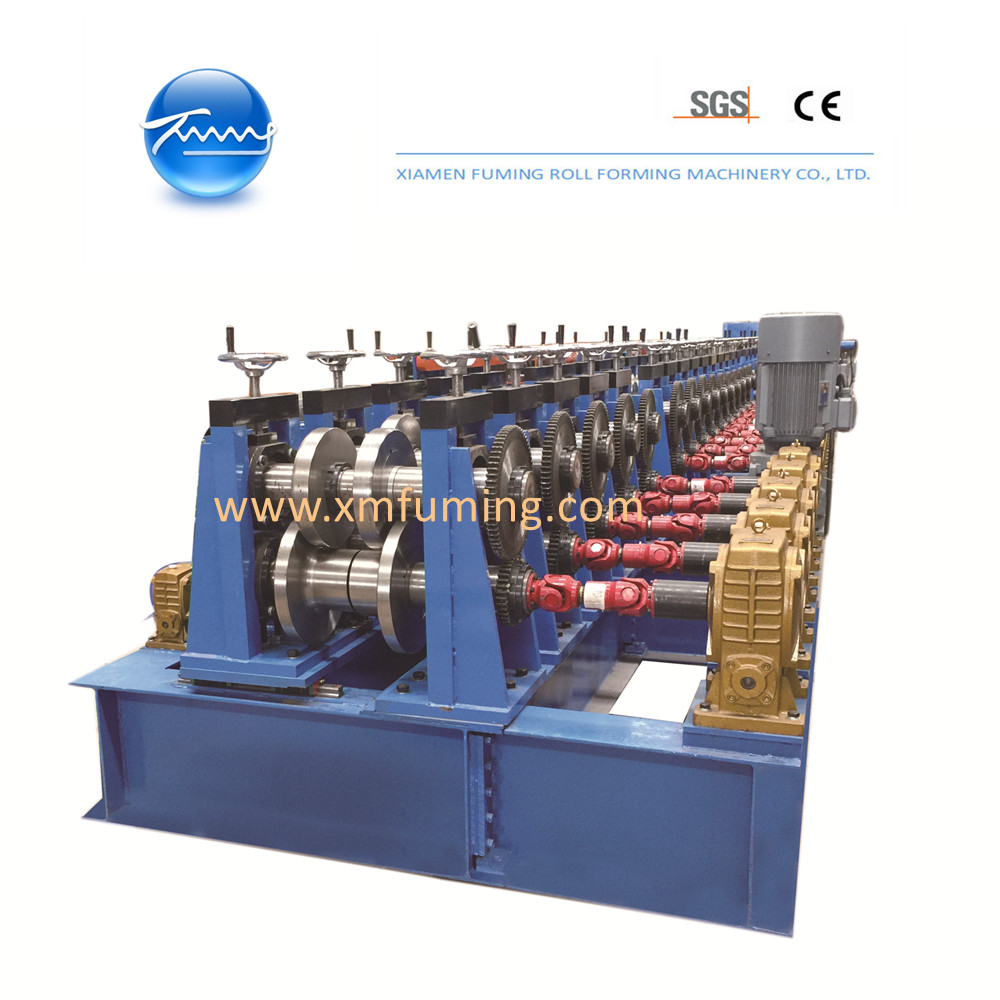

| ROLL FORMING MACHINE FOR 8MM U PROFILE(SIZE CHANGING AUTOMATICALLY) |
| Material Specification |
| Thickness | 6mm to 8mm |
| Web | 266mm to 320mm or customized |
| Flange | 95mm to 100mm or customized |
| Feeding width | 432mm~508mm |
| Material | Hot rolled steel |
| Yield strength | 250MPa to 550MPa |
| |
| Machine Components |
| 5Ton*600mm Hydraulic Decoiler |
| Coil inner hole expanding | Hydraulic system, 3KW pump motor |
| Speed regulating | Frequency inverter, 4KW motor |
| Expanding type | Taper wedge expanding system |
| Load capacity | Max.5Tons |
| Coil inner diameter | 510±30mm |
| Coil outer diameter | Max.1600mm |
| Coil width | Max.600mm |
| Stop/start rotation | Automatic stopping device with limited switch to assist |
| |
| Pneumatic Shoveling Device |
| Material head shoveling device to drive the feed-in table, air source provied by the user |
| | |
| Power Feed-in Device |
| Driving system | Gear/sprocket |
| Motor | 7.5KW |
| Stations to feed in | 4 |
| Lifting of the upper shafts | Controlled pneumatically |
| | |
| Pre-leveling Device |
| Pre-Level Device with 4 over 3 shafts to remove the Coil-set, Manual control |
| |
| Hydraulic Pre-shearing device |
| Function of pre-shearing devic | Smart cut control, to cut off the end of the final piece of sheet,cut to length control, manual clutch to assit |
| Cutting blade material | Cr12Mov, heat treatment |
| Spraying cooling system for cutting blade | 1 unit |
| Hydraulic pump motor | 15KW |
| |
| Roll Forming Machine |
| Driving system | Toroidal worm box |
| Forming station | 20 stations |
| Roller material | Cr12, heat treatment, HRC58~62 |
| Shafts Diameter | Φ105~110mm |
| Servo motor to drive | 22KW×2 |
| Motor for size changing | 2.2KW |
| Line speed of rollformer | Approx. 10m/min or customized |
| Spraying cooling system | Between certain stations |
| |
| PLC Control System |
| Function | Control quantity, punching and cutting length automatically |
| PLC | Siemens |
| Touch screen | Siemens |
| Inverter | Schneider or Delta |
| Encoder | Omron |
| Cut-to-length tolerance | ≤±1 mm |
| Punching tolerance | ≤±1 mm |
| Control Voltage | 24V |
| |
| Product Rack | 3 meters×2 |
